Validation Data Gallery
Tested Applications

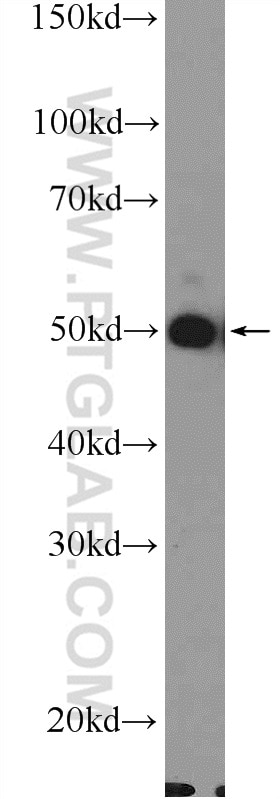

| Positive WB detected in | HepG2 cells |

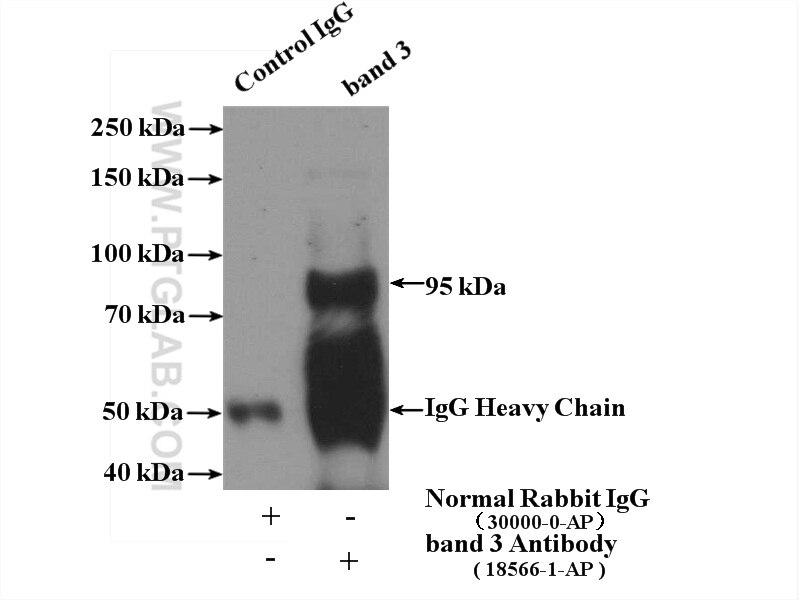

| Positive IP detected in | mouse liver tissue |
| Positive IHC detected in | human spleen tissue, human stomach cancer tissue, human kidney tissue Note: suggested antigen retrieval with TE buffer pH 9.0; (*) Alternatively, antigen retrieval may be performed with citrate buffer pH 6.0 |
| Positive IF-P detected in | human placenta tissue |
Recommended dilution
| Application | Dilution |
|---|---|
| Western Blot (WB) | WB : 1:200-1:1000 |
| Immunoprecipitation (IP) | IP : 0.5-4.0 ug for 1.0-3.0 mg of total protein lysate |
| Immunohistochemistry (IHC) | IHC : 1:20-1:200 |
| Immunofluorescence (IF)-P | IF-P : 1:50-1:500 |
| It is recommended that this reagent should be titrated in each testing system to obtain optimal results. | |
| Sample-dependent, Check data in validation data gallery. | |
Published Applications
| WB | See 4 publications below |
| IHC | See 2 publications below |
| IF | See 1 publications below |
Product Information
18566-1-AP targets Band 3/AE 1 in WB, IHC, IF-P, IP, ELISA applications and shows reactivity with human, mouse, rat samples.
| Tested Reactivity | human, mouse, rat |
| Cited Reactivity | human, mouse, rat, plasmodium falciparum |
| Host / Isotype | Rabbit / IgG |
| Class | Polyclonal |
| Type | Antibody |
| Immunogen | Band 3/AE 1 fusion protein Ag13076 相同性解析による交差性が予測される生物種 |
| Full Name | solute carrier family 4, anion exchanger, member 1 (erythrocyte membrane protein band 3, Diego blood group) |
| Calculated molecular weight | 911 aa, 102 kDa |
| Observed molecular weight | 95 kDa, 50 kDa |
| GenBank accession number | BC101570 |
| Gene Symbol | band 3 |
| Gene ID (NCBI) | 6521 |
| RRID | AB_10642570 |
| Conjugate | Unconjugated |
| Form | Liquid |
| Purification Method | Antigen affinity purification |
| UNIPROT ID | P02730 |
| Storage Buffer | PBS with 0.02% sodium azide and 50% glycerol , pH 7.3 |
| Storage Conditions | Store at -20°C. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage. |
Background Information
Anion exchanger 1 (AE1), also known as band 3, is a 95-100 kDa transmembrane glycoprotein which is abundantly expressed in erythrocyte plasma membrane and mediates the electroneutral exchange of Cl- and HCO3-. It contains a 52-55 kDa C-terminal membrane crossing domain and a 43 kDa N-terminal cytoplasmic domain. Degradation of band 3 protein occurred during erythrocyte aging. The oxidative stress can also activate the proteolysis of band 3 through caspases. This antibody is expected to recognize the intact band 3 (95-100 kDa) and various degradation products (38-60 kDa). (PMID: 22890269, 29240292, 28130418)
Protocols
| Product Specific Protocols | |
|---|---|
| WB protocol for Band 3/AE 1 antibody 18566-1-AP | Download protocol |
| IHC protocol for Band 3/AE 1 antibody 18566-1-AP | Download protocol |
| IF protocol for Band 3/AE 1 antibody 18566-1-AP | Download protocol |
| IP protocol for Band 3/AE 1 antibody 18566-1-AP | Download protocol |
| Standard Protocols | |
|---|---|
| Click here to view our Standard Protocols |
Publications
| Species | Application | Title |
|---|---|---|
Blood Ferroportin deficiency in erythroid cells causes serum iron deficiency and promotes hemolysis due to oxidative stress. | ||
Sci Adv Red blood cell-derived nanoerythrosome for antigen delivery with enhanced cancer immunotherapy. | ||
J Proteome Res Proximity Proteomics Has Potential for Extracellular Vesicle Identification. | ||
Stem Cells Int Pyridoxal-5'-Phosphate Promotes Immunomodulatory Function of Adipose-Derived Mesenchymal Stem Cells through Indoleamine 2,3-Dioxygenase-1 and TLR4/NF-κB Pathway. | ||
PLoS One Mechanisms that determine the internal environment of the developing brain: a transcriptomic, functional and ultrastructural approach. | ||
Front Neurosci Influx mechanisms in the embryonic and adult rat choroid plexus: a transcriptome study. |
