CoraLite® Plus 488-conjugated AZI2 Monoclonal antibody

AZI2 Monoclonal Antibody for IF/ICC, FC (Intra)

Host / Isotype

Mouse / IgG1

Reactivity

human

Applications

IF/ICC, FC (Intra)

Conjugate

CoraLite® Plus 488 Fluorescent Dye

CloneNo.

2F1G5

Cat no : CL488-68326

Synonyms

AZI2/NAP1, Nak-associated protein 1, Nak associated protein 1, 5-azacytidine-induced protein 2, 5 azacytidine induced 2

Validation Data Gallery

Filter:
  • Immunofluorescence (IF) / fluorescent staining of HeLa cells using CoraLite® Plus 488-conjugated AZI2 Monoclonal anti (CL488-68326)

    IF Staining of HeLa using CL488-68326

    Immunofluorescent analysis of (-20°C Methanol) fixed HeLa cells using CoraLite® Plus 488 AZI2 antibody (CL488-68326, Clone: 2F1G5 ) at dilution of 1:200.

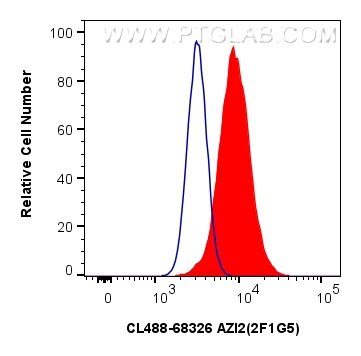

  • Flow cytometry (FC) experiment of HeLa cells using CoraLite® Plus 488-conjugated AZI2 Monoclonal anti (CL488-68326)

    FC experiment of HeLa using CL488-68326

    1x10^6 HeLa cells were intracellularly stained with 0.4 ug CoraLite® Plus 488-conjugated AZI2 Monoclonal antibody (CL488-68326, Clone:2F1G5)(red), or 0.4 ug CoraLite® Plus 488 Mouse IgG1 Isotype Control (1F8D3) (CL488-66360-1, Clone: 1F8D3) (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C).

☆大好評トライアルサイズ ¥20,000～！ >>> 一次抗体特別価格キャンペーン開催中！

Tested Applications

Positive IF/ICC detected inHeLa cells
Positive FC (Intra) detected inHeLa cells

Recommended dilution

ApplicationDilution
Immunofluorescence (IF)/ICCIF/ICC : 1:200-1:800
Flow Cytometry (FC) (INTRA)FC (INTRA) : 0.40 ug per 10^6 cells in a 100 µl suspension
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.
Sample-dependent, Check data in validation data gallery.

Product Information

CL488-68326 targets AZI2 in IF/ICC, FC (Intra) applications and shows reactivity with human samples.

Tested Reactivity human
Host / Isotype Mouse / IgG1
Class Monoclonal
Type Antibody
Immunogen AZI2 fusion protein Ag6755 相同性解析による交差性が予測される生物種
Full Name 5-azacytidine induced 2
Calculated molecular weight 45 kDa
Observed molecular weight 45 kDa
GenBank accession numberBC001139
Gene symbol AZI2
Gene ID (NCBI) 64343
Conjugate CoraLite® Plus 488 Fluorescent Dye
Excitation/Emission maxima wavelengths493 nm / 522 nm
Form Liquid
Purification MethodProtein G purification
Storage Buffer PBS with 50% Glycerol, 0.05% Proclin300, 0.5% BSA, pH 7.3.
Storage ConditionsStore at -20°C. Avoid exposure to light. Stable for one year after shipment. Aliquoting is unnecessary for -20oC storage.

Background Information

AZI2, also known as NAP1, is a TNF receptor (TNFR)-associated factor family member-associated NF-κB activator-binding kinase 1-binding protein that regulates the production of IFNs. It is an adapter protein which binds TBK1 and IKBKE playing a role in antiviral innate immunity. NAP1 is a kind of adapter protein which binds TBK1 and IKBKE playing a role in antiviral innate immunity. (PMID: 21931631)

Protocols

Product Specific Protocols
IF protocol for CL Plus 488 AZI2 antibody CL488-68326Download protocol
FC protocol for CL Plus 488 AZI2 antibody CL488-68326Download protocol
Standard Protocols
Click here to view our Standard Protocols
