HSP47/SERPINH1 Recombinant antibody, PBS Only (Detector)

HSP47/SERPINH1 Recombinant Antibody for WB, IHC, FC (Intra), Sandwich ELISA, Indirect ELISA, Sample test

Host / Isotype

Rabbit / IgG

Reactivity

human, mouse

Applications

WB, IHC, FC (Intra), Sandwich ELISA, Indirect ELISA, Sample test

Conjugate

Unconjugated

CloneNo.

240752F6

Cat no : 83689-3-PBS

Synonyms

HSP47, SERPINH1, CBP2, CBP1, AsTP3

Validation Data Gallery

Filter:

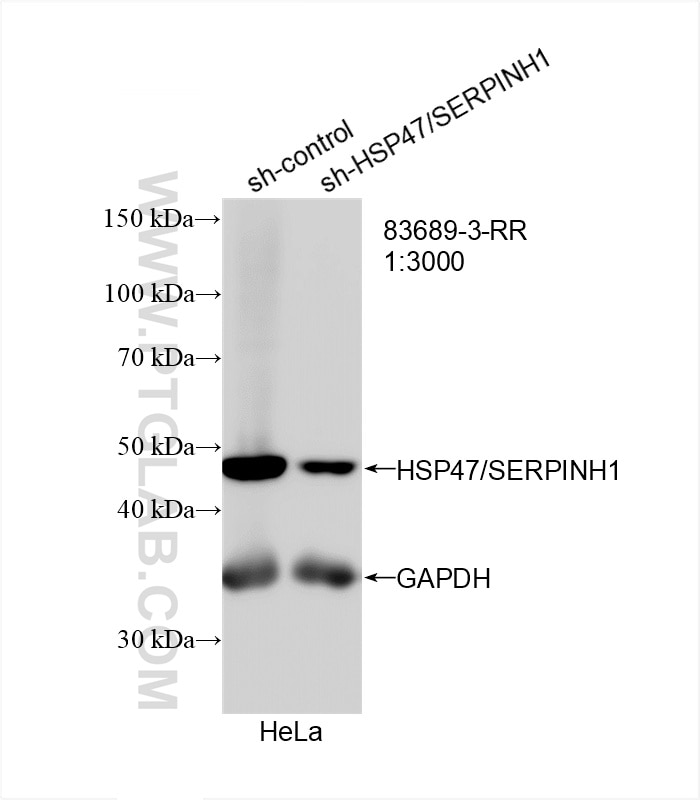

  • Western Blot (WB) analysis of various lysates using HSP47/SERPINH1 Recombinant antibody (83689-3-RR)

    WB analysis using 83689-3-RR (same clone as 83689-3-PBS)

    Various lysates were subjected to SDS PAGE followed by western blot with 83689-3-RR (HSP47/SERPINH1 antibody) at dilution of 1:10000 incubated at room temperature for 1.5 hours. This data was developed using the same antibody clone with 83689-3-PBS in a different storage buffer formulation.

  • Sandwich ELISA standard curve of MP00677-2

    Sandwich ELISA standard curve of MP00677-2

    Sandwich ELISA standard curve of MP00677-2, Human HSP47/SERPINH1 Recombinant Matched Antibody Pair - PBS only. 83689-4-PBS was coated to a plate as the capture antibody and incubated with serial dilutions of standard Eg1201. 83689-3-PBS was HRP conjugated as the detection antibody. Range: 0.23-15 ng/mL

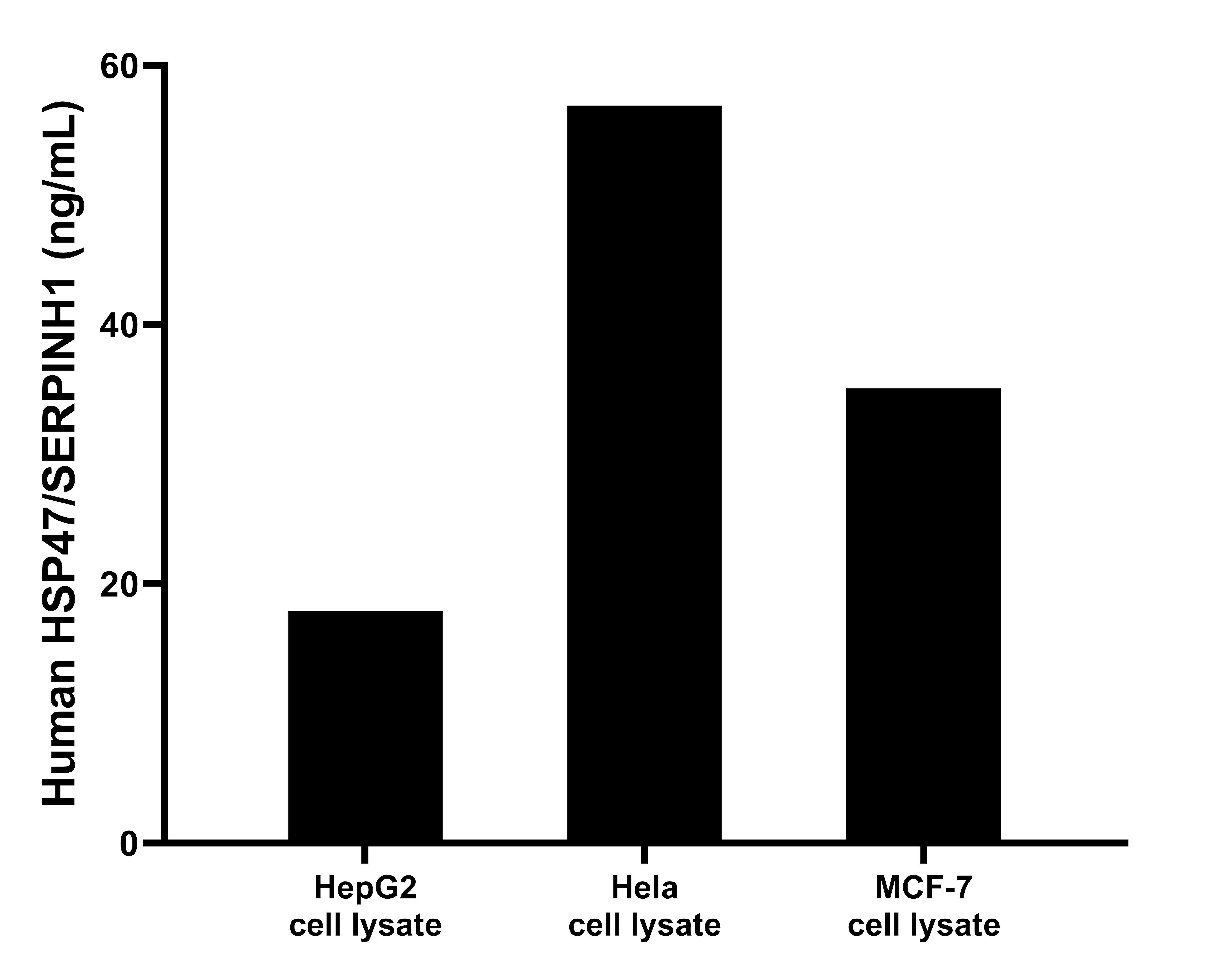

  • Sample test of MP00677-2

    Sample test of MP00677-2

    HepG2, Hela and MCF-7 cells were cultured in DMEM supplemented with 10% fetal bonive serum, 100 U/mL penicillin, and 100 μg/mL streptomycin sulfate. Aliquots of the cell culture supernates were removed. Cells were lysed and assayed for human HSP47/SERPINH1. Human HSP47/SERPINH1 in HepG2 cell lysate measured 17.9 ng/mL. Human HSP47/SERPINH1 in Hela cell lysate measured 56.9 ng/mL. Human HSP47/SERPINH1 in MCF-7 cell lysate measured 35.1 ng/mL.

  • Immunohistochemistry (IHC) staining of human ovarian cancer using HSP47/SERPINH1 Recombinant antibody (83689-3-RR)

    IHC staining of human ovarian cancer using 83689-3-RR (same clone as 83689-3-PBS)

    Immunohistochemical analysis of paraffin-embedded human ovarian cancer slide using 83689-3-RR (HSP47/SERPINH1 antibody) at dilution of 1:400 (under 20x lens). Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0). This data was developed using the same antibody clone with 83689-3-PBS in a different storage buffer formulation.

  • Flow cytometry (FC) experiment of HepG2 cells using HSP47/SERPINH1 Recombinant antibody (83689-3-RR)

    FC experiment of HepG2 using 83689-3-RR (same clone as 83689-3-PBS)

    1x10^6 HepG2 cells were intracellularly stained with 0.25 ug HSP47/SERPINH1 Recombinant antibody (83689-3-RR, Clone:240752F6) and PE-Conjugated AffiniPure Goat Anti-Rabbit IgG(H+L)(red), or 0.25 ug Isotype Control (blue). Cells were fixed with 4% PFA and permeabilized with Flow Cytometry Perm Buffer (PF00011-C). This data was developed using the same antibody clone with 83689-3-PBS in a different storage buffer formulation.

  • Affinity and Kinetic Characterization of 83689-3-RR

    Affinity and Kinetic Characterization of 83689-3-RR

    Biolayer interferometry (BLl) kinetic assays of 83689-3-RR against Human HSP47/SERPINH1 were performed. The affinity constant is 12.9 nM.

☆対象製品が30%オフ！組換えタンパク質&免染用試薬 >>> キャンペーン実施中！

Tested Applications

Recommended dilution

ApplicationDilution
It is recommended that this reagent should be titrated in each testing system to obtain optimal results.

Product Information

83689-3-PBS targets HSP47/SERPINH1 as part of a matched antibody pair:

MP00677-2: 83689-4-PBS capture and 83689-3-PBS detection (validated in Sandwich ELISA)

Unconjugated rabbit recombinant monoclonal antibody in PBS only (BSA and azide free) storage buffer at a concentration of 1 mg/mL, ready for conjugation. Created using Proteintech’s proprietary in-house recombinant technology. Recombinant production enables unrivalled batch-to-batch consistency, easy scale-up, and future security of supply.

This conjugation ready format makes antibodies ideal for use in many applications including: ELISAs, multiplex assays requiring matched pairs, mass cytometry, and multiplex imaging applications.Antibody use should be optimized by the end user for each application and assay.

Tested Reactivity human, mouse
Host / Isotype Rabbit / IgG
Class Recombinant
Type Antibody
Immunogen Fusion Protein 相同性解析による交差性が予測される生物種
Full Name serpin peptidase inhibitor, clade H (heat shock protein 47), member 1, (collagen binding protein 1)
Calculated molecular weight46kDa
Observed molecular weight 46 kDa
GenBank accession numberNM_001235.5
Gene symbol HSP47/SERPINH1
Gene ID (NCBI) 871
Conjugate Unconjugated
Form Liquid
Purification MethodProtein A purfication
Storage Buffer PBS Only
Storage ConditionsStore at -80°C.

Background Information

HSP47 is also named as Serpin H1, colligen, CBP1, CBP2, HSP47, SERPINH2 and belongs to the serpin family. This gene encodes a member of the serpin superfamily of serine proteinase inhibitors. The encoded protein is localized to the endoplasmic reticulum. It binds specifically to collagen and can be involved as a chaperone in the biosynthetic pathway of collagen. Autoantibodies to the encoded protein have been found in patients with rheumatoid arthritis. HSP47 has a calculated molecular weight of 46 kDa.
